All humanoid robots
Biped humanoidNot confirmed

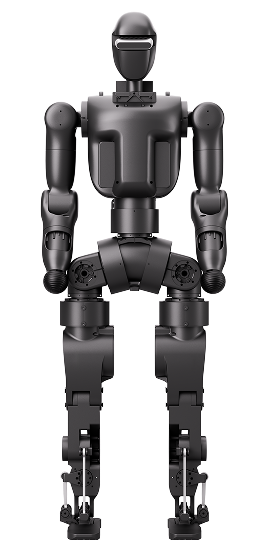

Fourier Intelligence N1

FI
Fourier Intelligence

China · Reviewed 2026-09-20

Fourier N1 is a bipedal research platform with an official Python development kit and documented joint interfaces.

Published offer

Price not verified

Availability: Not confirmed

01 / At a glance

Understanding Fourier Intelligence N1

DoF / joints
23

Intended applications

Robot control, locomotion research and software development

02 / Hardware profile

Fourier Intelligence N1 specifications

Category
Biped humanoid
Commercial status
Listed by manufacturer
Availability
Not confirmed
Country of origin
China
Degrees of freedom
23
Use cases
Robot control, locomotion research and software development

03 / Pricing and purchasing

Published offers and availability

No numerical offer recorded

Contact Fourier Intelligence for a written quotation for the exact configuration, including delivery, support and any software access fees.

04 / Technical analysis

Fourier Intelligence N1 engineering analysis

How much joint control is exposed by the Fourier N1 Python toolkit?

Fourier N1 is associated with official developer materials that describe joint interfaces and a Python toolchain. Research usefulness depends on access to states, action timing and robot-specific actuator safety limits. A script that publishes desired poses is a different interface from direct torque control. The SDK revision, installed firmware and hardware control rights must match before a policy is moved from a desktop simulator.

Configuration and hardware details

01

A documented route from commands to joints

Fourier’s N1 documentation lists 23 joints, comprising six per leg, five per arm and one at the waist. The SDK offers high-level robot commands and a lower-level interface for direct joint control, with Zenoh used for messaging.

02

What to check before comparing

Software access is a useful distinction when choosing a development platform. The documentation lists Ubuntu 22.04 with Python 3.11 as tested. Windows and macOS are described as untested, so cross-platform support should not be assumed to be validated.

03

An N1 developer example is not proof that every servo mode is open

Fourier's N1 ecosystem includes a Python development kit and documentation for joint-level interaction. The retained catalog identifies a 23-DoF biped; a researcher needs to connect that claim to the specific N1 firmware and physical joint map. Being able to command a high-level pose does not automatically grant direct torque access or a certified safe mode.

A reproducibility review should run a manufacturer-supported readback and gentle motion in a controlled environment, then compare the recorded joint states with a declared test target. Archive the SDK version, simulation model, connector setup and any safety procedure. If a biped gait was trained with different actuator limits, adaptation and physical validation remain necessary before claiming that policy runs on the published N1 revision.

Specification notes

The joint count follows the N1 SDK reference. Height and mass were not established from the checked sources.

Hands-on technical guide

Fourier Intelligence N1: ordering, setup and first controlled test

Commissioning checklist; examples have not been tested on physical hardware by TechniaHQService.

What to order and verify
Catalog access: Not confirmed. Request a written quote or order confirmation from Fourier Intelligence for Fourier Intelligence N1 with hardware revision, charger, controller, supported accessories, import/shipping costs, warranty, software entitlement and training. Do not treat a price listing as a delivery guarantee.
Software and equipment
Fourier N1 SDK documentation and Fourier Aurora SDK. Confirm the exact N1 release, OS and transport before installation.

Fourier Intelligence N1 workflow

  1. 01Order / accessFourier Intelligence N1
  2. 02SoftwareVersion-matched tools
  3. 03Initial checkRead-only diagnostics
  4. 04Acceptance testSupervised exercise
Conceptual workflow for the exercise below. This is an explanatory diagram, not an electrical wiring schematic or proprietary controller blueprint.

Step-by-step setup and first exercise

  1. 01

    Get the unit and files

    Use the manufacturer's sales or partner channel to confirm the serial configuration, supported software and contents of the delivery.

  2. 02

    Install the approved software

    Fourier N1 SDK documentation and Fourier Aurora SDK. Confirm the exact N1 release, OS and transport before installation. Install on the supported host OS and verify the release/build number. Do not use packages intended for another robot.

  3. 03

    Startup and stop check

    Follow the supplied power-on order; inspect battery, joints, cables and controller warnings. Verify the approved emergency stop and initial posture before allowing motion. Keep the test space clear.

  4. 04

    First exercise

    Use Fourier's N1-specific SDK documentation and exact actuator mapping; record read-only joint feedback before the approved standing routine.

  5. 05

    Firmware and software updates

    Compare the current serial/model, controller and firmware versions against the manufacturer's release notes. Export configuration and logs and check recovery options. Obtain the correct signed package or managed update; use the specified power and network conditions. Test stop controls and the same acceptance exercise after updating. If no authorized firmware path exists, do not flash the robot.

  6. 06

    Walking, running and dancing

    Only request a supported standing, walking or performance preset from the manufacturer. For a custom dance or run, obtain the exact joint model and validated controller, retarget motion in simulation, constrain joint position, speed, torque and contacts, then use vendor-supervised reduced-speed commissioning. No running or dance capability is implied by this procedure.

Commands and code

Use simulation or read-only checks first. On a real robot, use only the compatible documented interface, trained supervision and approved stop procedure. Replace illustrative network addresses and interfaces with your own.

Obtain the documented development files

git clone https://github.com/FFTAI/fourier_aurora_sdk.git
cd fourier_aurora_sdk
# Read the release-specific N1 installation instructions before running anything.

Troubleshooting

Controller cannot establish a connection
Verify the host OS, firmware compatibility, authorized account and network setup using the exact delivered manual; do not bypass safety or authentication.
Motion differs from the acceptance exercise
Stop using the approved control, record the exact fault and verify actuator/joint configuration and software revision before repeating.

Capabilities and limits

The acceptance exercise is a proposed commissioning check, not a measured performance result or proof of support for custom locomotion.

Community ratings

Fourier Intelligence N1 Reviews & Ratings

Hands-on community feedback is moderated before publication. Technical sub-ratings are optional.

—

0.0(0 reviews)
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

Published reviews

0 total

No published reviews yet

Be the first to submit hands-on feedback for moderation.

06 / References

Fourier Intelligence N1 sources

Manufacturer descriptions and the cited specifications were checked on 20 September 2026. This profile does not report an independent hands-on test.

  • Fourier Intelligence official product source (manufacturer)
  • Official manufacturer image (manufacturer)
