All humanoid robots
Entertainment research humanoidNot commercially available

HRP-4C Miim

AAK
AIST and Kawada Industries

Japan · Reviewed 2026-10-07

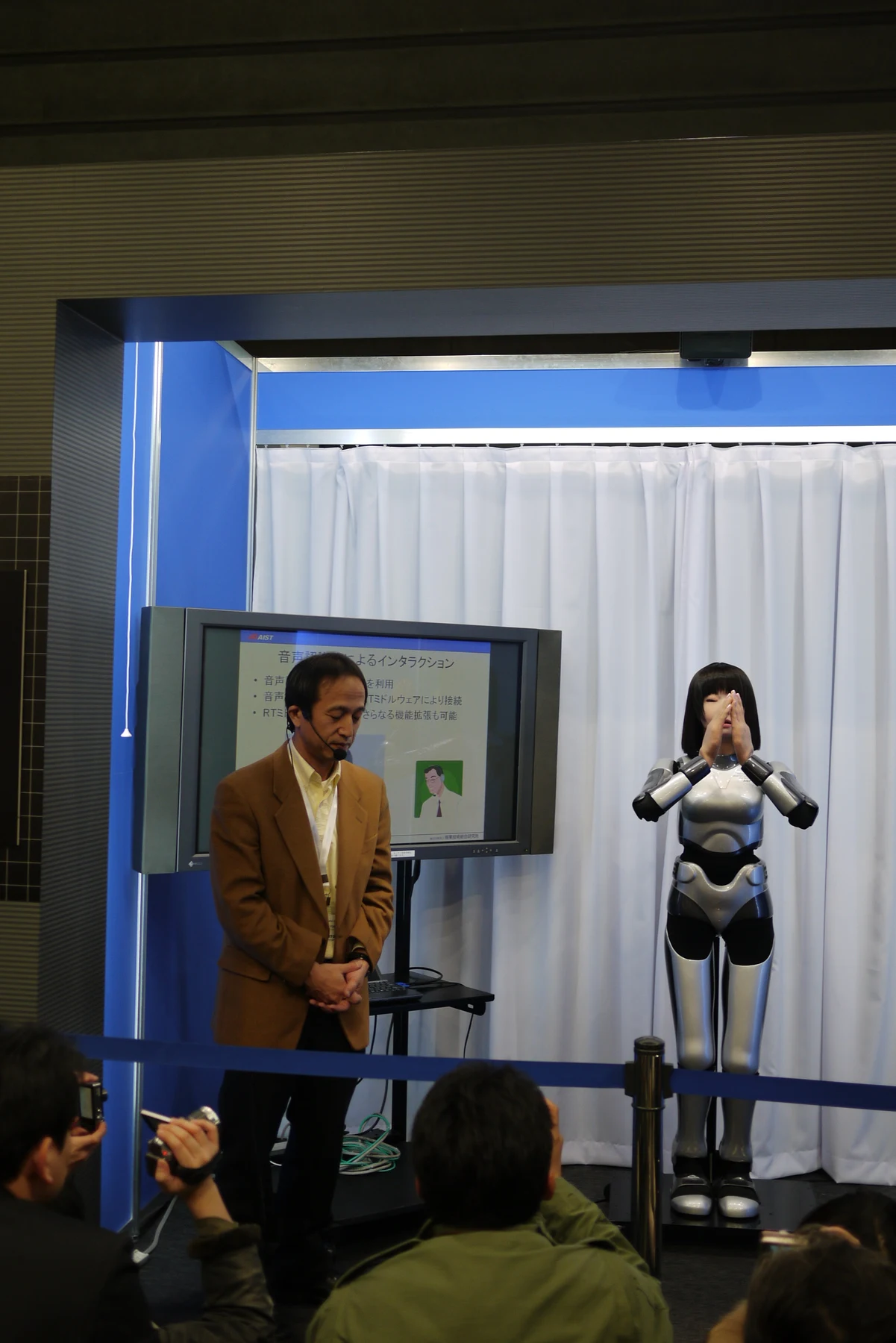

AIST's cybernetic human platform explored humanlike appearance, speech-linked motion and entertainment performance.

Published offer

Research platform

Availability: Not commercially available

01 / At a glance

Understanding HRP-4C Miim

Height
158 cm
Weight
43 kg
DoF / joints
42
Release
2009

Intended applications

Human-motion research, entertainment studies and public demonstrations

ResearchEntertainment

02 / Hardware profile

HRP-4C Miim specifications

Category
Entertainment research humanoid
Commercial status
Historical research platform
Availability
Not commercially available
Released
2009
Country of origin
Japan
Height
158 cm
Weight
43 kg
Degrees of freedom
42
Target markets
Research, Entertainment
Use cases
Human-motion research, entertainment studies and public demonstrations

03 / Pricing and purchasing

Published offers and availability

No numerical offer recorded

Contact AIST and Kawada Industries for a written quotation for the exact configuration, including delivery, support and any software access fees.

04 / Technical analysis

HRP-4C Miim engineering analysis

Why was HRP-4C used for humanlike performance research?

AIST developed HRP-4C Miim to study human-form motion and expressive behavior in entertainment settings. Appearance, controlled gestures and speech-linked movement are central to that work, whereas a production-cell evaluator would require repeatable grasp force and shift uptime. The original public demonstrations should be identified by date and operating mode; the fact that a robot imitates a human pose does not show that it generated the motion independently.

Configuration and hardware details

01

HRP-4C belongs in an archive of performance robotics

AIST's HRP-4C Miim is a historical research platform, not a current service-robot product. Its 158 cm humanlike form and published 42 degrees of freedom describe a specific robotics project developed for expressive motion and stage presentation. Clips of singing or walking reveal performance under the original setup but cannot be used as evidence of later autonomous industrial manipulation.

When documenting an archived demonstration, identify the original year, control software and whether choreography or speech playback was prepared in advance. The researcher may seek joint trajectories, body proportions and design papers rather than a commercial purchase price. Any modern simulation based on Miim should be described as a reconstruction unless original hardware and controller behavior were validated.

Specification notes

AIST’s technical paper lists 42 total DoF, including 6 per arm, 2 per hand, 6 per leg, 3 at the waist, 3 at the neck and 8 in the face.

Hands-on technical guide

HRP-4C Miim: ordering, setup and first controlled test

Commissioning checklist; examples have not been tested on physical hardware by TechniaHQService.

What to order and verify
Catalog access: Not commercially available. Do not pay a third-party listing for unverified access. Contact AIST and Kawada Industries for a supported pilot, research access or documented existing-unit support; a retail purchase is not established.
Software and equipment
Obtain the model-specific operator manual, controller application, firmware compatibility matrix and developer package from AIST and Kawada Industries. No public installer or SDK is confirmed in this model's catalog record.

HRP-4C Miim workflow

  1. 01Order / accessHRP-4C Miim
  2. 02SoftwareManufacturer-approved package
  3. 03Initial checkPartner demonstration
  4. 04Acceptance testObserved supported task
Conceptual workflow for the exercise below. This is an explanatory diagram, not an electrical wiring schematic or proprietary controller blueprint.

Step-by-step setup and first exercise

  1. 01

    Get the unit and files

    Obtain a supported access agreement or existing-unit service confirmation; request the manual, available functions and evidence of maintenance support.

  2. 02

    Install the approved software

    Obtain the model-specific operator manual, controller application, firmware compatibility matrix and developer package from AIST and Kawada Industries. No public installer or SDK is confirmed in this model's catalog record. Install on the supported host OS and verify the release/build number. Do not use packages intended for another robot.

  3. 03

    Startup and stop check

    Ask the authorized operator to show the documented startup, shutdown and safe stop procedure. Do not attempt physical power-on without access.

  4. 04

    First exercise

    Treat performance motion as a research demonstration; request authorization and motion data rather than commercial dance files.

  5. 05

    Firmware and software updates

    Compare the current serial/model, controller and firmware versions against the manufacturer's release notes. Export configuration and logs and check recovery options. Obtain the correct signed package or managed update; use the specified power and network conditions. Test stop controls and the same acceptance exercise after updating. If no authorized firmware path exists, do not flash the robot.

  6. 06

    Walking, running and dancing

    These functions require access to a supported robot and its approved motion software. Public footage does not establish an owner-programmable running or dance mode.

Troubleshooting

Controller cannot establish a connection
Verify the host OS, firmware compatibility, authorized account and network setup using the exact delivered manual; do not bypass safety or authentication.
Motion differs from the acceptance exercise
Stop using the approved control, record the exact fault and verify actuator/joint configuration and software revision before repeating.

Capabilities and limits

Physical access and software entitlements must be established first. No consumer installation or motion commands are offered for an unavailable robot.

Community ratings

HRP-4C Miim Reviews & Ratings

Hands-on community feedback is moderated before publication. Technical sub-ratings are optional.

—

0.0(0 reviews)
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

Published reviews

0 total

No published reviews yet

Be the first to submit hands-on feedback for moderation.

06 / References

HRP-4C Miim sources

AIST’s official HRP-4C release and technical paper were checked on 7 October 2026. They support the 158 cm height, 43 kg mass and 42-DoF total used in this profile.

  • AIST HRP-4C official release (manufacturer)
  • AIST HRP-4C technical paper (verification)
