All humanoid robots
Compact humanoidAvailable

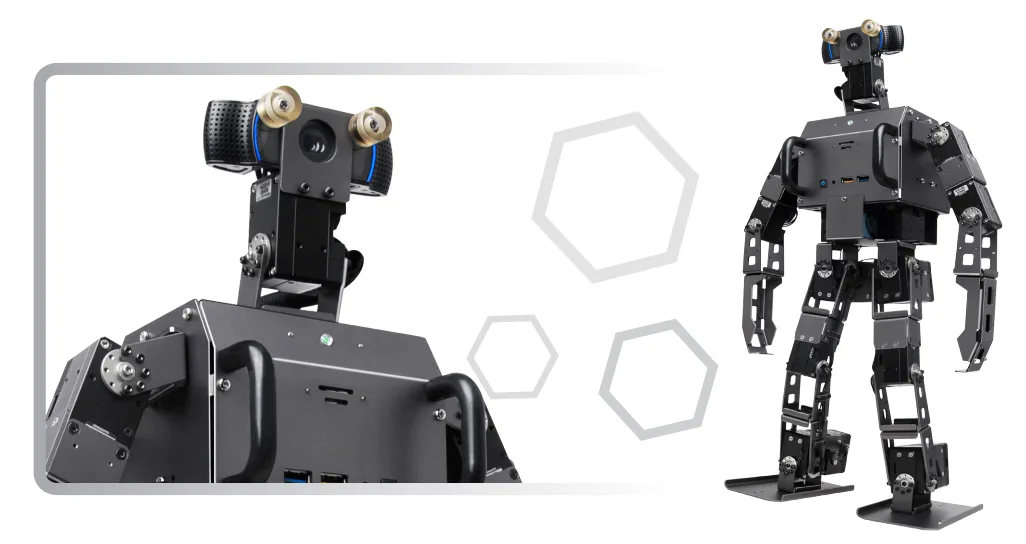

ROBOTIS OP3

R
ROBOTIS

South Korea · Reviewed 2026-08-15

An open, ROS-compatible compact humanoid platform used in education, research and RoboCup competitions.

Published offer

Distributor pricing varies

Availability: Available

01 / At a glance

Understanding ROBOTIS OP3

Height
51 cm
Weight
3.5 kg
DoF / joints
20
Release
2017

Intended applications

Education, RoboCup, computer vision and humanoid locomotion research

EducationResearchRoboCup

02 / Hardware profile

ROBOTIS OP3 specifications

Category
Compact humanoid
Commercial status
Commercial research platform
Availability
Available
Released
2017
Country of origin
South Korea
Height
51 cm
Weight
3.5 kg
Degrees of freedom
20
Target markets
Education, Research, RoboCup
Use cases
Education, RoboCup, computer vision and humanoid locomotion research

03 / Pricing and purchasing

Published offers and availability

No numerical offer recorded

Contact ROBOTIS for a written quotation for the exact configuration, including delivery, support and any software access fees.

04 / Technical analysis

ROBOTIS OP3 engineering analysis

Why is the installed OP3 software generation important for ROS projects?

ROBOTIS OP3 is a compact humanoid with a documented DYNAMIXEL-driven control system and ROS tooling. Many existing examples target ROS 1 and specific Ubuntu versions; simply cloning an old package into a ROS 2 workspace may fail at build time. Motor IDs, serial communication and balance calibration must match the physical revision. Simulator movement can also differ from hardware when foot friction or motor acceleration limits are simplified.

Hands-on technical guide

OP3: launch ROS 2 simulation and learn the motion modules

Commissioning checklist; examples have not been tested on physical hardware by TechniaHQService.

What to order and verify
Check whether the delivered OP3 uses the ROS 2 Jazzy image or legacy ROS 1 packages; these command sets are not interchangeable.
Software and equipment
ROS 2 Jazzy, the ROBOTIS OP3 ROS packages, simulator and RViz. For actual hardware use the onboard SBC and configured DYNAMIXEL bus.

ROBOTIS OP3 workflow

  1. 01ROS 2 toolsGUI / launch
  2. 02op3_managerMotion modules
  3. 03DYNAMIXEL busPosition feedback
  4. 04OP3 jointsLeg / head / arm
Conceptual workflow for the exercise below. This is an explanatory diagram, not an electrical wiring schematic or proprietary controller blueprint.

Step-by-step setup and first exercise

  1. 01

    Identify software generation

    Confirm installed ROS distribution and source the correct workspace. Do not use ROS 1 launch commands on ROS 2.

  2. 02

    Launch a virtual OP3

    With the ROS 2 simulation packages installed, use the simulation launch command. Observe the robot model and ROS graph.

  3. 03

    Inspect controller messages

    Use the topic list and check whether the joint-state topics expected by OP3 are active. This is a read-only check.

  4. 04

    First motion

    In the supervised GUI demo, select the base module's initial pose. Then select head_control_module and change one head angle within the allowed range.

  5. 05

    Replay an action

    Select action_module and choose a predefined motion. For a new action use op3_action_editor, and review the motion in simulation before deploying.

  6. 06

    Firmware and software update

    Record the installed hardware configuration and firmware/SDK versions. Obtain the matching approved update from ROBOTIS, save configuration and logs, check rollback and power requirements, and follow the manufacturer’s installation procedure. Verify the safe stop and repeat the first test before returning to normal operation.

  7. 07

    Walking, running and dancing

    Only request a supported standing, walking or performance preset from the manufacturer. For a custom dance or run, obtain the exact joint model and validated controller, retarget motion in simulation, constrain joint position, speed, torque and contacts, then use vendor-supervised reduced-speed commissioning. No running or dance capability is implied by this procedure.

Commands and code

Use simulation or read-only checks first. On a real robot, use only the compatible documented interface, trained supervision and approved stop procedure. Replace illustrative network addresses and interfaces with your own.

ROS 2 simulation and read-only inspection

ros2 launch op3_manager op3_simulation.launch.py
# In a second terminal with the same workspace sourced:
ros2 topic list
ros2 topic echo /robotis/goal_joint_states --once

Open GUI after the OP3 manager is running

ros2 launch op3_gui_demo op3_demo.launch.py

Troubleshooting

No ROS topics
Check the sourced workspace, ROS distribution and discovery network.
Offset calibration error
Use the documented OP3 tuner client to review and save offsets; avoid changing gains to hide a mechanical calibration fault.

Capabilities and limits

The ROS 2 tutorial notes a version limitation for upgraded online walking. Do not assume a ROS 1 gait feature exists in the installed ROS 2 version.

05 / Comparable models

Compare ROBOTIS OP3 with similar robots

Catalog records with their original source dates
FieldROBOTIS OP3FF Master MiniAgiBot X2
Height51 cm95 cm131 cm
Mass3.5 kg19.5 kgApprox. 35 kg for X2
Recorded degrees of freedom202225 for X2; 30 for X2 Ultra
Source date in record2026-08-152026-09-202026-10-07
Product sourceROBOTIS OP3 documentationFF Master Mini documentationAgiBot X2 documentation

ROBOTIS OP3 is recorded as 44 cm shorter than FF Master Mini.

ROBOTIS OP3 is recorded as 80 cm shorter than AgiBot X2.

Community ratings

ROBOTIS OP3 Reviews & Ratings

Hands-on community feedback is moderated before publication. Technical sub-ratings are optional.

—

0.0(0 reviews)
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

Published reviews

0 total

No published reviews yet

Be the first to submit hands-on feedback for moderation.

06 / References

ROBOTIS OP3 sources

Published specifications and supplier information are distinguished from independently measured performance.

  • ROBOTIS OP3 official e-Manual (manufacturer)
  • ROBOTIS official store (verification)
