All humanoid robots
Biped humanoidNot confirmed

Noetix Robotics E1

NR
Noetix Robotics

China · Reviewed 2026-09-20

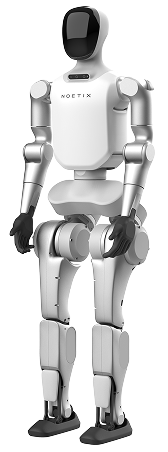

Noetix E1 is a mid-size biped with optional additional articulation and a distinct EDU development package.

Published offer

Price not verified

Availability: Not confirmed

01 / At a glance

Understanding Noetix Robotics E1

Height
140 cm
Weight
40 kg
DoF / joints
23–28, depending on options

Intended applications

Humanoid demonstrations and control research

02 / Hardware profile

Noetix Robotics E1 specifications

Category
Biped humanoid
Commercial status
Listed by manufacturer
Availability
Not confirmed
Country of origin
China
Height
140 cm
Weight
40 kg
Degrees of freedom
23–28, depending on options
Use cases
Humanoid demonstrations and control research

03 / Pricing and purchasing

Published offers and availability

No numerical offer recorded

Contact Noetix Robotics for a written quotation for the exact configuration, including delivery, support and any software access fees.

04 / Technical analysis

Noetix Robotics E1 engineering analysis

Which E1 edition provides access to extra joints and developer tools?

E1 is a mid-size biped with optional articulation and a dedicated EDU development package. A demonstration of finger or waist movements may show an option absent from a lower-cost version. Research teams should request the body and hand joint maps, camera details and compute capability for their order code before comparing E1 with a fixed specification from another manufacturer.

Configuration and hardware details

01

Options change the joint total

Noetix lists a 140 cm body with a mass of 40 kg and 23–28 DoF depending on options. The standard and EDU configurations use the same listed dimensions. EDU adds an Orin Nano Super module and secondary-development support.

02

What to check before comparing

Use the configured joint count when comparing E1 with N2 or Bumi. The upper end of the range includes optional articulation and should not be assigned to every E1. Confirm the wrist, waist and software options in the actual offer.

03

Count E1's optional joints before planning the software curriculum

The E1 is listed as a mid-size humanoid with additional articulation available on certain configurations. Its 140 cm, 40 kg body cannot be summarized by a single joint count that applies to every commercial and EDU edition. A developer following an example written for the EDU version needs to confirm the actuator map, controllers and optional hands on the unit in front of them.

For a repeatable training lab, archive the firmware, exact SDK access and simulation model used for the exercise. Ask students to verify the number of readable joints before starting balance or grasp experiments. The ability to play a vendor motion library does not by itself show that the interface permits a custom joint-level walking policy.

Specification notes

The table reports a 10.6 Ah battery and two-to-three-hour endurance without a standardized task in this record.

Hands-on technical guide

Noetix Robotics E1: ordering, setup and first controlled test

Commissioning checklist; examples have not been tested on physical hardware by TechniaHQService.

What to order and verify
Catalog access: Not confirmed. Request a written quote or order confirmation from Noetix Robotics for Noetix Robotics E1 with hardware revision, charger, controller, supported accessories, import/shipping costs, warranty, software entitlement and training. Do not treat a price listing as a delivery guarantee.
Software and equipment
Obtain the model-specific operator manual, controller application, firmware compatibility matrix and developer package from Noetix Robotics. No public installer or SDK is confirmed in this model's catalog record.

Noetix Robotics E1 workflow

  1. 01Order / accessNoetix Robotics E1
  2. 02SoftwareManufacturer-approved package
  3. 03Initial checkRead-only diagnostics
  4. 04Acceptance testSupervised exercise
Conceptual workflow for the exercise below. This is an explanatory diagram, not an electrical wiring schematic or proprietary controller blueprint.

Step-by-step setup and first exercise

  1. 01

    Get the unit and files

    Use the manufacturer's sales or partner channel to confirm the serial configuration, supported software and contents of the delivery.

  2. 02

    Install the approved software

    Obtain the model-specific operator manual, controller application, firmware compatibility matrix and developer package from Noetix Robotics. No public installer or SDK is confirmed in this model's catalog record. Install on the supported host OS and verify the release/build number. Do not use packages intended for another robot.

  3. 03

    Startup and stop check

    Follow the supplied power-on order; inspect battery, joints, cables and controller warnings. Verify the approved emergency stop and initial posture before allowing motion. Keep the test space clear.

  4. 04

    First exercise

    Request E1-specific joint limits and control package; validate an approved standing and short stepping exercise.

  5. 05

    Firmware and software updates

    Compare the current serial/model, controller and firmware versions against the manufacturer's release notes. Export configuration and logs and check recovery options. Obtain the correct signed package or managed update; use the specified power and network conditions. Test stop controls and the same acceptance exercise after updating. If no authorized firmware path exists, do not flash the robot.

  6. 06

    Walking, running and dancing

    Only request a supported standing, walking or performance preset from the manufacturer. For a custom dance or run, obtain the exact joint model and validated controller, retarget motion in simulation, constrain joint position, speed, torque and contacts, then use vendor-supervised reduced-speed commissioning. No running or dance capability is implied by this procedure.

Troubleshooting

Controller cannot establish a connection
Verify the host OS, firmware compatibility, authorized account and network setup using the exact delivered manual; do not bypass safety or authentication.
Motion differs from the acceptance exercise
Stop using the approved control, record the exact fault and verify actuator/joint configuration and software revision before repeating.

Capabilities and limits

The acceptance exercise is a proposed commissioning check, not a measured performance result or proof of support for custom locomotion.

05 / Comparable models

Compare Noetix Robotics E1 with similar robots

Catalog records with their original source dates
FieldNoetix Robotics E1EngineAI PM01MagicLab MagicBot Z1
Height140 cm140 cm136.9 cm
Mass40 kg44.5 kgApproximately 40 kg or more, including battery
Recorded degrees of freedom23–28, depending on options2424 basic; up to 50 with options
Source date in record2026-09-202026-09-202026-09-20
Product sourceNoetix Robotics E1 documentationEngineAI PM01 documentationMagicLab MagicBot Z1 documentation

Noetix Robotics E1 and EngineAI PM01 have the same recorded height of 140 cm.

Noetix Robotics E1 is recorded as 3.1 cm taller than MagicLab MagicBot Z1.

Community ratings

Noetix Robotics E1 Reviews & Ratings

Hands-on community feedback is moderated before publication. Technical sub-ratings are optional.

—

0.0(0 reviews)
5 star
0%
4 star
0%
3 star
0%
2 star
0%
1 star
0%

Published reviews

0 total

No published reviews yet

Be the first to submit hands-on feedback for moderation.

06 / References

Noetix Robotics E1 sources

Manufacturer descriptions and the cited specifications were checked on 20 September 2026. This profile does not report an independent hands-on test.

  • Noetix Robotics official product source (manufacturer)
  • Official manufacturer image (manufacturer)
