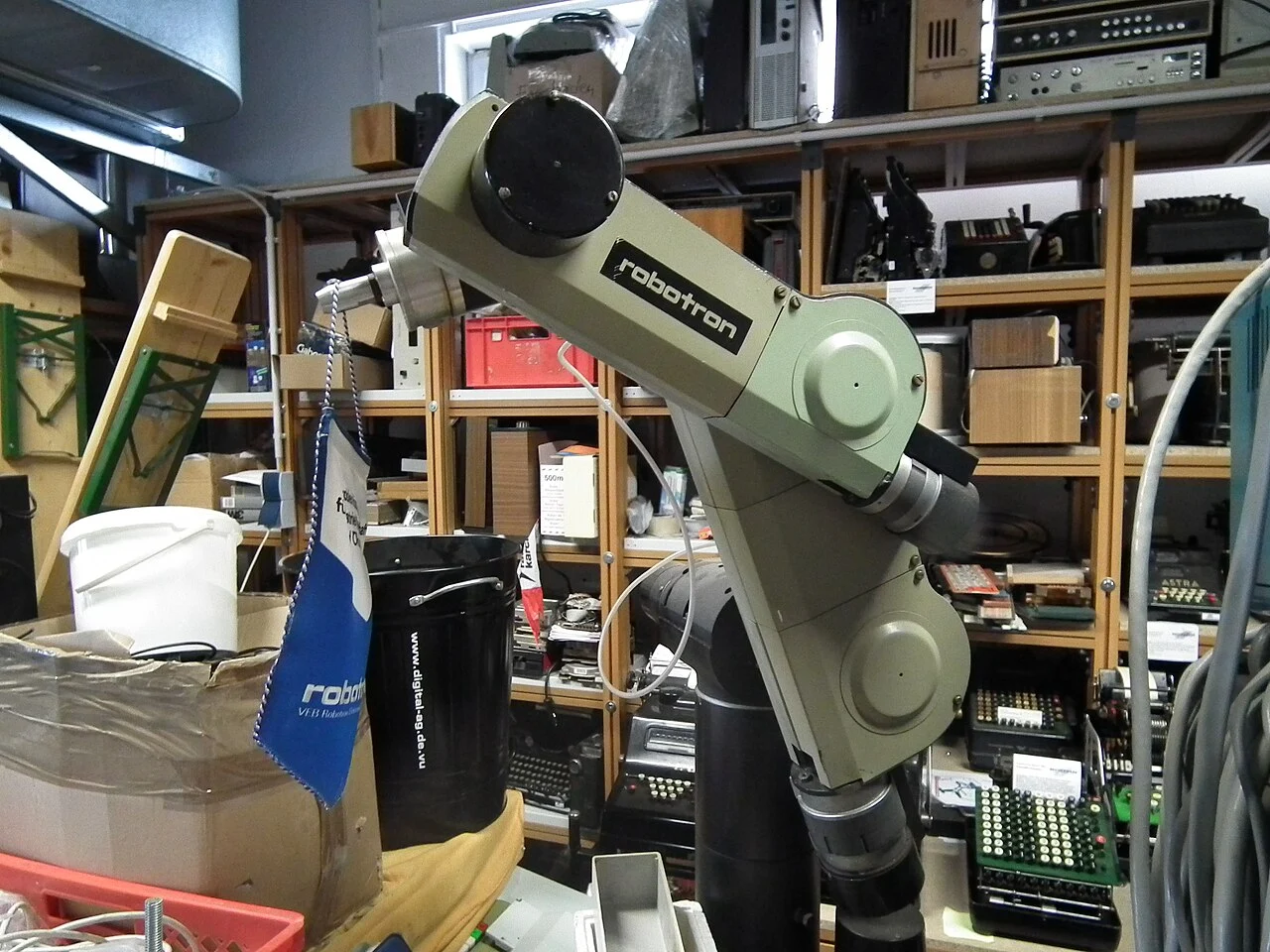

Introduction
An industrial robotic arm is easy to compare badly. A datasheet gives payload, reach, axes and repeatability, but a production cell succeeds or fails on details hidden behind those headline numbers: the center of gravity of the part, wrist inertia, cable routing, cycle time, tooling mass, mounting orientation, safety architecture and the machine the arm must actually serve.
The search results for this topic are dominated by pages that explain robot types and applications. That is useful background, but a buyer needs a decision framework. This guide starts with the workpiece and motion, then works backward to the arm, end effector, controller, safety system and integration burden.
Key findings
- Payload is not simply the weight of the part. End-effector mass, workpiece center of gravity and allowable wrist inertia can reduce the usable load for a specific motion.
- Reach is not the same as a useful work envelope. Joint limits, singularities, fixtures, fences and wrist orientation remove portions of the theoretical envelope.
- Articulated six-axis robots suit complex orientation changes; SCARAs excel at fast planar assembly and handling; delta robots dominate very fast lightweight picking; palletizers trade orientation freedom for speed and payload.
- ISO 10218-1:2025 addresses industrial robot safety at the robot level, while ISO 10218-2:2025 addresses integrated industrial robot applications and cells.
- The arm price is only one line of the project. Tooling, guarding, vision, PLC work, fixtures, electrical work, programming, validation and downtime during commissioning can materially change total cost.
Industrial robotic arm types
| Type | Best fit | Main trade-off |
|---|---|---|
| 6-axis articulated | Welding, machine tending, assembly, complex handling | Flexible orientation; more kinematic complexity |
| SCARA | Fast assembly, insertion, tray handling | Excellent planar speed; less 3D orientation freedom |
| Delta | High-speed lightweight picking | Very fast; limited payload/workspace |
| 4-axis palletizer | Cases, bags and layer palletizing | High throughput/payload; fewer orientation options |
Robot arm specification checklist
| Specification | Why it matters | Common mistake |
|---|---|---|
| Payload | Tool + part + adapters must fit load limits | Using part weight alone |
| Reach/work envelope | Determines accessible poses | Treating max reach as usable everywhere |
| Wrist inertia/moments | Limits long or off-center loads | Ignoring center of gravity |
| Repeatability | Consistency at taught positions | Calling it absolute accuracy |
| Mounting/environment | Changes geometry and protection needs | Selecting before checking cell conditions |
Start with the task, not the robot brand
Write the application as a motion-and-contact problem. Record the heaviest part, tool weight, part center of gravity, pickup and drop poses, required orientation, cycle time, accuracy requirement, environmental exposure and the machines around the robot. A welding torch, vacuum gripper and spindle create very different dynamic loads even on the same nominal payload.
Also separate repeatability from absolute accuracy. A robot can return to a taught point very consistently while its absolute Cartesian position differs from the nominal model. For many production cells, repeatability matters more because the fixture is taught and stays fixed. Metrology, offline programming and flexible fixture changes can make absolute accuracy more important.
Articulated, SCARA, delta and palletizing arms solve different geometry
A six-axis articulated arm can change tool orientation through a large three-dimensional workspace, which is why it appears in welding, machine tending, assembly and material handling. ABB currently groups articulated robots across small, medium and large payload classes; its medium range includes systems up to 60 kg for applications such as welding and machine tending.
A SCARA uses a different kinematic structure. Its strength is fast, precise horizontal motion with vertical insertion, making it attractive for electronics, small-parts assembly, tray handling and loading. ABB describes its SCARA family around rapid cycle time, precision and reliability rather than the broad orientation freedom of a six-axis arm.
Delta robots are optimized for extremely fast lightweight pick-and-place above conveyors. Dedicated palletizers often use four axes because boxes rarely need arbitrary wrist orientation. Paying for axes you do not need can add complexity without improving throughput.
Payload, reach and inertia: the three numbers that must be read together
If a robot is rated for 20 kg, that does not mean every 20 kg assembly is acceptable at every pose and speed. The robot also carries the gripper, adapters, hoses, cameras and sensors. A long tool or off-center part increases moment load at the wrist. Manufacturers publish load diagrams or allowable inertia data for exactly this reason.
Reach also needs a margin. Designing a cell that operates continuously at the edge of maximum reach can force awkward joint configurations, lower speed and make collision-free approach paths harder. Simulate the complete tool and part, not a point at the flange.
A useful procurement rule: size from the worst real tool-plus-part load case, then validate that case in the manufacturer load diagram and cell simulation.
Cycle time comes from the whole cell
Robot maximum speed rarely predicts station throughput. A cycle includes sensing, machine doors, clamp actuation, gripper close time, part settling, safety-zone transitions, PLC handshakes and process time. Heavy or fragile parts may need lower acceleration even if the arm can move faster.
For machine tending, ask how long the spindle waits for the robot. For palletizing, ask whether the conveyor, case spacing or pallet exchange is the bottleneck. For vision-guided picking, inference and pose-estimation latency can dominate the motion.
End effectors and utilities can decide the project
The robot flange does not touch the product; the end effector does. Vacuum cups need adequate surface quality and vacuum generation. Parallel grippers need jaw geometry and grip force that do not damage the part. Welding, dispensing and sanding tools add cables, hoses, consumables and process-control requirements.
Route utilities so they do not snag or impose unexpected torque on the wrist. Tool changers improve flexibility but add mass, stack height, electrical or pneumatic interfaces and another failure point. If a cell handles many SKUs, tooling strategy can matter more than the choice between two similar robot arms.
Safety belongs to the application, not to a sticker on the arm
ISO 10218-1:2025 covers safety requirements for industrial robots as partly completed machinery. ISO 10218-2:2025 addresses the integrated application or robot cell. That distinction matters because an arm can be designed with safety functions while the finished cell remains unsafe due to layout, tooling, workpieces, access points or process hazards.
A risk assessment needs to consider crushing, trapping, sharp tooling, ejected parts, stored energy, unexpected restart, maintenance access and human entry. Collaborative operation is an application design question, not a synonym for a small robot. The allowable operating mode depends on the complete system and task.
What industrial robotic arms actually cost
Public list prices are uncommon for many traditional industrial arms, and the robot itself is not the project budget. A useful estimate separates robot and controller, end effector, fixtures, vision, safety hardware, electrical panels, integration engineering, programming, acceptance testing, training, spares and production downtime during installation.
When two quotations differ sharply, normalize the scope before comparing them. One quote may include guarding, risk assessment and commissioning while another lists only the arm and controller. A cheap arm inside an expensive custom cell is not a cheap automation project.
A seven-question selection test
A robot that passes these seven checks is much closer to a defensible selection than one chosen from payload and reach alone.
- Define the complete tool-plus-part mass, center of gravity and inertia for the worst case.
- Map every pickup, process and drop pose with required wrist orientation.
- Calculate target cycle time from the complete process, not robot travel alone.
- Choose the kinematic family that fits the geometry before choosing the brand.
- Validate the work envelope, collisions, cable routing and mounting in simulation.
- Design the safety concept and maintenance access with the integrator.
- Compare total installed cost and expected support, not the arm purchase price.
Limitations and missing information
- Product specifications, software capabilities, prices and availability can change; verify the exact configuration before procurement.
- A successful vendor demonstration does not establish production uptime, intervention rate or performance in a different facility.
- Safety guidance here is educational and does not replace a site-specific risk assessment, integrator validation or applicable regulations.
Conclusion
The best industrial robotic arm is the one that completes the real process inside the real cell with margin for payload, geometry, safety and service. Datasheet peak numbers are useful inputs, but they are not a production system.
Frequently asked questions
What is an industrial robotic arm?
It is a programmable industrial manipulator used for tasks such as handling, welding, assembly, machine tending, dispensing and palletizing. Common architectures include articulated, SCARA, delta and dedicated palletizing robots.
How many axes does an industrial robot arm need?
It depends on the task. Six axes are common when the tool needs flexible 3D orientation. SCARAs typically use four axes for fast planar assembly, while many palletizing systems use four axes because arbitrary wrist orientation is unnecessary.
Does a 20 kg payload robot safely carry any 20 kg part?
No. Tool weight, center of gravity, wrist moments and inertia matter. The manufacturer load diagram and the exact motion must be checked.
What is the difference between repeatability and accuracy?
Repeatability is how consistently the robot returns to the same commanded pose. Absolute accuracy is how closely the real pose matches the nominal coordinate. A robot can have excellent repeatability without equally strong absolute accuracy.
Which safety standards apply to industrial robot arms?
ISO 10218-1:2025 covers industrial robots and ISO 10218-2:2025 covers industrial robot applications and robot cells. Regional laws and application-specific requirements can add further obligations.
